Drawer cabinet

1'311.60 CHF
incl. of VAT

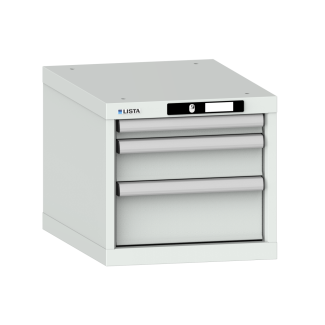

Drawer cabinet 18x27E (WxDxH) 411x572x383mm 3 drawers (1x50/1x100/1x150) 75kg AUTO Lock Pale grey NCS S 2000-N
remove add add_shopping_cart
Accessories
Show matching accessories

Description

AUTO Lock: The LISTA AUTO Lock features the same functionality as our RFID Lock, however opening and locking take place automatically. With LISTA Access software (option), time profiles can also be programmed in the lock or on the user for time-limited access for increased security. Automatic opening/locking via RFID badge or number code.

Drawer safety device standard: Standard configuration including single-drawer blocking system

Notes

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

Technical Data

Description
Drawer cabinet
Net weight kg
37
LISTA units
18 x 27 E
Width mm
411
Depth mm
572
Height mm
383
Clear height mm
300
Number of front heights mm
1 x 50 / 1 x 100 / 1 x 150
Drawer safety catch
Standard
Drawer clear dimensions (W x D) mm
300 x 450
Drawers useful width mm
306
Drawers useful depth mm
459
Number of drawers
3
Drawer load capacity kg
75
Locking system
AUTO Lock
Colour
Pale grey NCS S 2000-N
Product specific advantages
add_box

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

add_box

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

add_box

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

add_box

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

add_box

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

add_box

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

add_box

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

add_box

Extremely quiet
thanks to differential pull-out without a crossbar

add_box

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting
