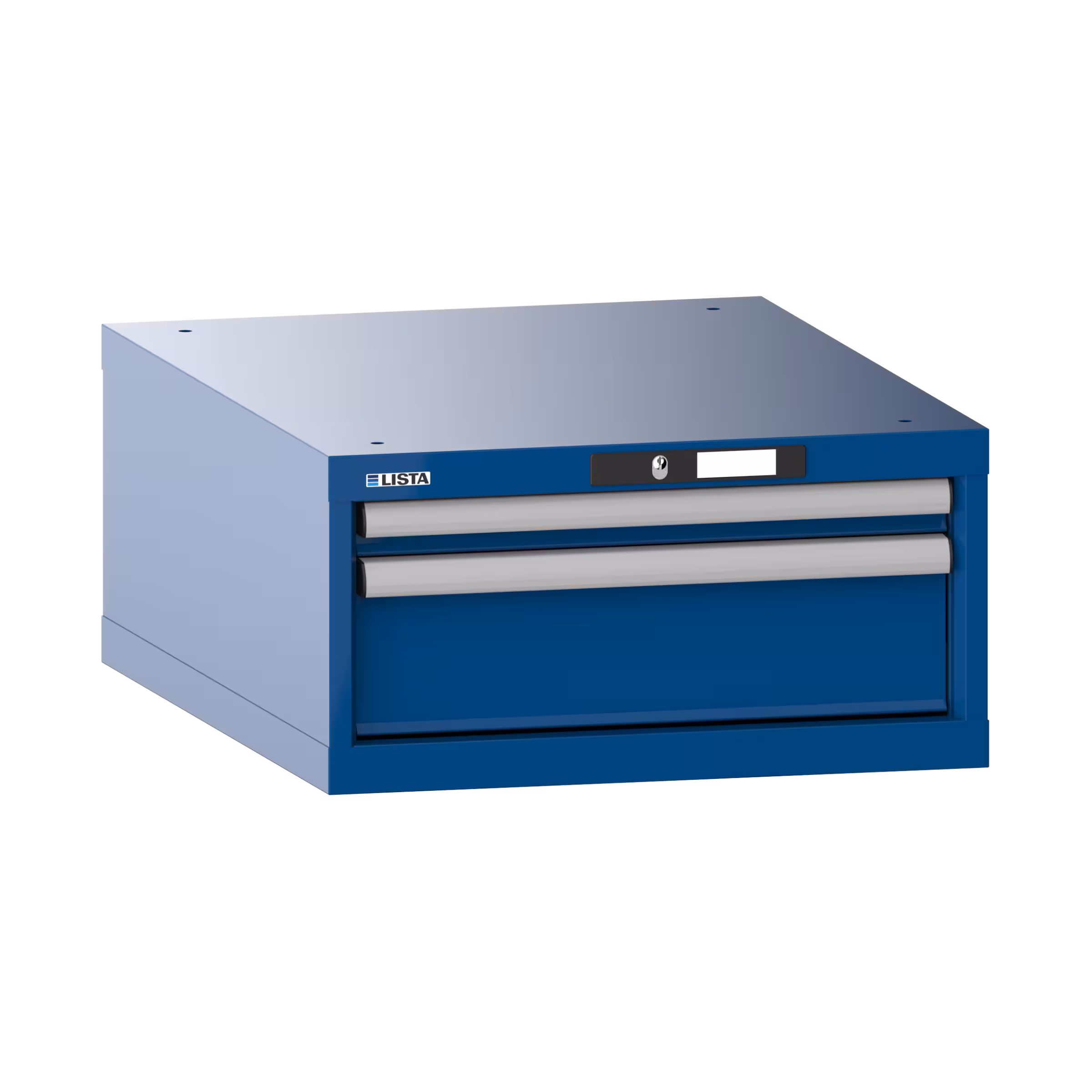

Drawer cabinet

904.80 CHF
incl. of VAT
Drawer cabinet 27x36E (WxDxH) 564x725x283mm 2 drawers (1x50/1x150) 75kg CODE Lock Signal blue RAL 5005

Other color variants

Accessories

Description

CODE Lock: When locking with CODE Lock, the key is replaced by a number combination. A simple four to six-digit code is all that is needed to open the product. Manual opening/locking with number code.

Drawer safety device standard: Standard configuration including single-drawer blocking system

Notes

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

Technical Data

Description
Drawer cabinet
Net weight kg
39
LISTA units
27 x 36 E
Width mm
564
Depth mm
725
Height mm
283
Clear height mm
200
Number of front heights mm
1 x 50 / 1 x 150
Drawer safety catch
Standard
Drawer clear dimensions (W x D) mm
450 x 600
Drawers useful width mm
459
Drawers useful depth mm
612
Number of drawers
2
Drawer load capacity kg
75
Locking system
CODE Lock
Colour
Signal blue RAL 5005
Product specific advantages
add_box

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

add_box

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

add_box

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

add_box

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

add_box

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

add_box

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

add_box

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

add_box

Extremely quiet
thanks to differential pull-out without a crossbar

add_box

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting

Matching accessories for Drawer cabinet
Set Troughs 27x36E/36x27E (WxDxFH) 612x459x50mm

Troughs

Partition material Set troughs 27x36E/36x27E (WxD) 612x459mm FH 50mm 12 troughs, 50 dividers
109.20 CHF
incl. of VAT
Set Plastic boxes 27x36E/36x27E (WxDxFH) 612x459x50mm

Plastic boxes

Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 50mm 28 plastic boxes
82.15 CHF
incl. of VAT
Set Plastic boxes 27x36E/36x27E (WxDxFH) 612x459x50mm

Plastic boxes

Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 50mm 18 plastic boxes
65.95 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x50mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 2 slotted dividers, 10 metal separators
38.90 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x150mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 10 metal separators
64.85 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x150mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 1 slotted partition, 2 metal separators
24.85 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x150mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 3 metal separators
43.25 CHF
incl. of VAT
Set Troughs 27x36E (WxDxFH) 459x612x50mm

Troughs

Partition material Set troughs 27x36E (WxD) 459x612mm FH 50mm 12 troughs, 30 dividers
92.95 CHF
incl. of VAT
Set Troughs 27x36E (WxDxFH) 459x612x50mm

Troughs

Partition material Set troughs 27x36E (WxD) 459x612mm FH 50mm 12 troughs, 30 dividers
89.70 CHF
incl. of VAT
Set Plastic boxes 27x36E (WxDxFH) 459x612x50mm

Plastic boxes

Partition material Set plastic boxes 27x36E (WxD) 459x612mm FH 50mm 38 plastic boxes
102.70 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x50mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 4 slotted dividers, 25 metal separators
72.45 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x50mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 3 slotted dividers, 8 metal separators
40.00 CHF
incl. of VAT
Set Slotted partitions and Metal dividers 27x36E (WxDxFH) 459x612x150mm

Slotted dividers and metal separators

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 3 slotted dividers, 8 metal separators
72.45 CHF
incl. of VAT
Non-slip mat 27x36E (WxDxH) 450x600x3mm

Non-slip mat

Non-slip mat 27x36E (WxDxH) 450x600x3mm FH 50-300mm anthracite
14.60 CHF
incl. of VAT
Foam insert 27x36E (WxDxH) 600x447x22mm

Foam insert

Foam insert 27x36E (WxDxH) 600x447x22mm FH 50-300mm black
50.25 CHF
incl. of VAT
Foam underlay 27x36E (WxDxH) 600x447x3mm

Foam underlay

Foam underlay 27x36E (WxDxH) 600x447x3mm FH 50-300mm blau
32.45 CHF
incl. of VAT
Plunge cutter 20mm

Plunge cutter

Plunge cutter 20mm FH 50-300mm
8.75 CHF
incl. of VAT
Plunge cutter 50mm

Plunge cutter

Plunge cutter 50mm FH 50-300mm
15.15 CHF
incl. of VAT
Plunge cutter 20x20 U shape

Plunge cutter

Plunge cutter 20x20 U shape
30.25 CHF
incl. of VAT
LISTA script labels Standard pack

LISTA Script labels Standard pack

LISTA script labels Standard pack
8.75 CHF
incl. of VAT
LISTA Access Software

LISTA Access Software

LISTA Access Software
167.55 CHF
incl. of VAT
