Lista AG Shop – Drawer cabinet

RFID Lock: In addition to the CODE Lock, the LISTA RFID Lock enables opening and locking via standard radio-frequency identification (RFID). It consists of a transponder in the lock and standard mobile RFID badges/cards/tags. Manual opening/locking via RFID badge or number code.

Drawer safety device standard: Standard configuration including single-drawer blocking system

Notes

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

Technical Data

Description

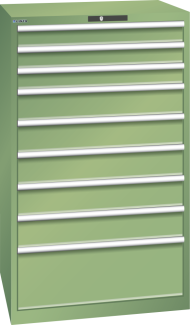

Drawer cabinet

Net weight kg

213

LISTA units

45 x 36 E

Width mm

870

Depth mm

725

Height mm

1450

Clear height mm

1350

Number of front heights mm

3 x 100 / 5 x 150 / 1 x 300

Drawer safety catch

Standard

Drawer clear dimensions (W x D) mm

750 x 600

Drawers useful width mm

765

Drawers useful depth mm

612

Number of drawers

Drawer load capacity kg

200

Locking system

RFID Lock

Colour

Reseda green RAL 6011

Product specific advantages

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

Extremely quiet
thanks to differential pull-out without a crossbar

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting

Matching accessories for Drawer cabinet

Raised edges on 3 sides

74.029.000

Raised edge 3 sides 45x36E (WxDxH) 870x725x20mm black NCS S 9000-N, including ribbed mat black

204.30 CHF

incl. of VAT

Cover panel

12.596.000

Cover panel 45x36E (WxDxH) 870x725x20mm Multiplex

277.80 CHF

incl. of VAT

Cover panel

74.142.000

Cover panel 45x36E (WxDxH) 870x725x22mm Resin-coated Light grey NCS S 1500-N

259.45 CHF

incl. of VAT

Housing base

74.056.000

Housing base 45x36E (WxDxH) 870x693x50mm Black NCS S 9000-N

123.25 CHF

incl. of VAT

Base cover

74.067.000

Base cover 45E (WxH) 870x100mm Black NCS S 9000-N

51.90 CHF

incl. of VAT

Ribbed mat

74.018.000

Ribbed mat 45x36E (WxDxH) 865x720x3mm black

78.90 CHF

incl. of VAT

Protective strip

323.434.000

Protective strip 36E (LxDxH) 720x10x25mm black

60.55 CHF

incl. of VAT

Levelling foot set

69.919.000

Levelling foot set with 4 x levelling feet (45-90mm)

147.00 CHF

incl. of VAT

2-way pallet/forklift truck base

74.063.000

2-way pallet/forklift truck base 45x36E (WxDxH) 870x659x100mm without base cover Black NCS S 9000-N

204.30 CHF

incl. of VAT

Plastic boxes

80.500.000

Partition material Set plastic boxes 45x36E (WxD) 765x612mm FH 100,125mm 30 plastic boxes

211.90 CHF

incl. of VAT

Plastic boxes

80.503.000

Partition material Set plastic boxes 45x36E (WxD) 765x612mm FH 100,125mm 20 plastic boxes

157.85 CHF

incl. of VAT

Slotted dividers and metal separators

80.504.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 100,125mm 2 slotted dividers, 8 metal separators

51.35 CHF

incl. of VAT

Slotted dividers and metal separators

80.505.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 150mm 2 slotted dividers, 8 metal separators

65.95 CHF

incl. of VAT

Slotted dividers and metal separators

80.508.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 300mm 2 slotted dividers, 8 metal separators

123.25 CHF

incl. of VAT

Slotted dividers and metal separators

80.510.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 100,125mm 3 slotted dividers, 15 metal separators

85.40 CHF

incl. of VAT

Slotted dividers and metal separators

80.511.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 150mm 3 slotted dividers, 15 metal separators

101.60 CHF

incl. of VAT

Slotted dividers and metal separators

80.514.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 100,125mm 4 slotted dividers, 21 metal separators

114.60 CHF

incl. of VAT

Slotted dividers and metal separators

80.515.000

Partition material Set slotted partitions and metal dividers 45x36E (WxD) 765x612mm FH 150mm 4 slotted dividers, 21 metal separators

130.80 CHF

incl. of VAT

Non-slip mat

130.743.000

Non-slip mat 45x36E (WxDxH) 750x600x3mm FH 50-300mm anthracite

21.60 CHF

incl. of VAT

LISTA Script labels Standard pack

80.325.000

LISTA script labels Standard pack

8.65 CHF

incl. of VAT

LISTA Access Software

19.590.000

LISTA Access Software

165.40 CHF

incl. of VAT

RFID Card Reader

19.591.000

RFID Card reader

165.40 CHF

incl. of VAT

RFID User Badge

19.560.000

RFID User Badge blue 5 pcs.

42.70 CHF

incl. of VAT

RFID Program Badge

19.561.000

RFID program Badge black 2 pcs.

23.80 CHF

incl. of VAT
