NC cabinet

5'147.60 CHF
incl. of VAT

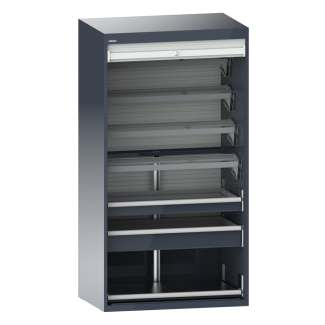

NC cabinet with roller shutter 54x27E (WxDxH) 1038x691x1950mm 4 tool cradles, 2 drawers, 1 pull-out shelf, without tool holder KEY Lock Slate grey RAL 7015
remove add add_shopping_cart
Other color variants
010
020
030
040
050
060
070
080
090
100
110
120
130
140
170
180
190
200
210
220
230
240
280

Description

Cabinet housing: The housings have double walls with side panels with internal slots to attach pull-out and adjustable shelves, drawers and tool cradles. The adjustment range is subdivided into a 25 mm grid. Specification: sheet steel.

Roller shutter: The integrated plastic roller shutter has a practical recessed grip with a modular V sleeve and 67 mm catch. Specification: roller shutter with plastic slats. Colour: pale grey, RAL 7035.

KEY Lock: KEY Lock, our standard locking system with replaceable cylinders. Manual opening/locking with key.

Technical Data

Description
NC cabinet
Net weight kg
179
LISTA units
54 x 27 E
Width mm
1038
Depth mm
691
Height mm
1950
Clear height mm
1730
Drawers useful width mm
918
Drawers useful depth mm
459
Drawer load capacity kg
200
Locking system
KEY Lock
Type
without tool holder
Specifications
4 tool cradle, 2 drawers (front heights 100 / 150 mm, load capacity 200 kg), 1 pull-out shelves (200 kg), including single-drawer opening system
Door type
Roller shutter
Housing load capacity kg
1200
Colour
Slate grey RAL 7015
Product specific advantages
add_box

Safe, clean and organised storage
in high-quality inserts made from break-proof, impact-proof and oil-resistant ABS material tailored to hold your cutting tools

add_box

Optimum space utilisation
because these high-capacity systems are not only space-saving, but the tools are just where you need them – right next to the machine

add_box

Customised and easy to assemble
using tool holders with snap fasteners for tool-free insertion and removal

add_box

Secure transport
thanks to robust and stable design

add_box

Maximum ease of use and ergonomics
since holders can be fitted at an angle and shelves and drawers can be pulled out
