NC transport unit

2'481.65 CHF
incl. of VAT

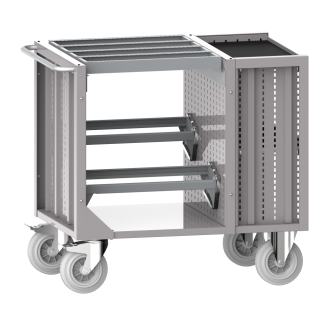

NC transport unit 36x36E (WxDxH) 1080x692x975mm without tool holder Grey aluminium RAL 9007
remove add add_shopping_cart
Other color variants
010
020
030
040
050
060
070
080
090
100
110
130
140
170
180
190
200
210
220
230
240
260
280
Accessories
Show matching accessories

Description

NC transport units: Both preconfigured and customised models are available. Carefully welded construction made of high-quality sheet steel. The side panels are reinforced with shaped steel. In the side panels there are strips of slots to hang frame supports, tool cradles or insert frames without screws. In addition the strips of slots are used to insert the adjustable shelves. Equipment: bogie with two swivel and two fixed castors. Castors with ball bearings and solid rubber tyres. Swivel castors with braking mechanism. With a yellow galvanised push bar and Mica-Bond painted in silver grey. Specification: sheet steel.

Technical Data

Description
NC transport unit
Net weight kg
85
LISTA units
36 x 36 E
Width mm
1080
Depth mm
692
Height mm
975
Castor load capacity kg
600
Type
without tool holder
Specifications
1 insert frame with pair of frame supports, 2 tool cradle with pair of frame supports, sloping, 2 adjustable shelves including PVC ribbed mat wheel diameter Ø 200 mm, rubber castors
Colour
Grey aluminium RAL 9007
Product specific advantages
add_box

Safe, clean and organised storage
in high-quality inserts made from break-proof, impact-proof and oil-resistant ABS material tailored to hold your cutting tools

add_box

Optimum space utilisation
because these high-capacity systems are not only space-saving, but the tools are just where you need them – right next to the machine

add_box

Customised and easy to assemble
using tool holders with snap fasteners for tool-free insertion and removal

add_box

Secure transport
thanks to robust and stable design

add_box

Maximum ease of use and ergonomics
since holders can be fitted at an angle and shelves and drawers can be pulled out

Matching accessories for NC transport unit
Tool holders 12.062.000

Tool holders

12.062.000
Tool holder ISO-SK 40 with snap fastener, for partitioning scheme B, red
8.75 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.650.000

Tool holders

12.650.000
Tool holder Capto C3 with snap fastener, for partitioning scheme A, red
9.40 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.651.000

Tool holders

12.651.000
Tool holder Capto C4 with snap fastener, for partitioning scheme A, red
10.25 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.652.000

Tool holders

12.652.000
Tool holder Capto C5 with snap fastener, for partitioning scheme B, red
12.45 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.653.000

Tool holders

12.653.000
Tool holder Capto C6 with snap fastener, for partitioning scheme E, red
12.95 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.654.000

Tool holders

12.654.000
Tool holder Capto C8 with snap fastener, for partitioning scheme F, red
14.60 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.655.000

Tool holders

12.655.000
Tool holder Capto C10 with snap fastener, for partitioning scheme G, red
15.65 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.832.000

Tool holders

12.832.000
Tool holder to drill out yourself 58mm screwed, for partitioning scheme A, red
21.60 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.838.000

Tool holders

12.838.000
Tool holder to drill out yourself 535mm screwed, for partitioning scheme H, red
91.90 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.866.000

Tool holders

12.866.000
Tool holder VDI 25 cylindrical screwed, for partitioning scheme A, red
31.35 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.875.000

Tool holders

12.875.000
Tool holder ISO-SK 50 with snap fastener, for partitioning scheme F, red
10.25 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.877.000

Tool holders

12.877.000
Tool holder ISO-SK 45 with snap fastener, for partitioning scheme F, red
9.40 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.880.000

Tool holders

12.880.000
Tool holder ISO-SK 30 with snap fastener, for partitioning scheme B, red
7.25 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.884.000

Tool holders

12.884.000
Tool holder VDI 60 cylindrical (Gr. 32) with snap fastener, for partitioning scheme F, red
12.95 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.885.000

Tool holders

12.885.000
Tool holder VDI 50 cylindrical (Gr. 25) with snap fastener, for partitioning scheme E, red
11.35 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.886.000

Tool holders

12.886.000
Tool holder VDI 40 cylindrical (Gr. 20) with snap fastener, for partitioning scheme E, red
10.25 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.887.000

Tool holders

12.887.000
Tool holder VDI 30 cylindrical (Gr. 16) with snap fastener, for partitioning scheme B, red
8.75 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.314.000

Tool holders

15.314.000
Tool holder HSK 32 A+C+E/40 B+D+F with snap fastener, for partitioning scheme A, red
8.75 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.318.000

Tool holders

15.318.000
Tool holder HSK 40 A+C+E/50 B+D+F with snap fastener, for partitioning scheme A, red
9.40 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.319.000

Tool holders

15.319.000
Tool holder HSK 50 A+C+E/63 B+D+F with snap fastener, for partitioning scheme B, red
10.25 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.320.000

Tool holders

15.320.000
Tool holder HSK 63 A+C+E/80 B+D+F with snap fastener, for partitioning scheme E, red
10.80 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.329.000

Tool holders

15.329.000
Tool holder VDI 20 cylindrical screwed, for partitioning scheme A, red
30.80 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.330.000

Tool holders

15.330.000
Tool holder HSK 80 A+C+E/100 B+D+F with snap fastener, for partitioning scheme F, red
11.35 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.336.000

Tool holders

15.336.000
Tool holder HSK 100 A+C+E/125 B+D+F with snap fastener, for partitioning scheme G, red
12.45 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 15.328.000

Tool holders

15.328.000
Tool holders ISO-SK 25 screwed, for partitioning scheme F, red
43.80 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.879.000

Tool holders

12.879.000
Tool holders ISO-SK 35 with snap fastener, for partitioning scheme B, red
8.00 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.833.000

Tool holders

12.833.000
Tool holders self-drilling 65.6mm screwed, for partitioning scheme B, red
22.70 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.834.000

Tool holders

12.834.000
Tool holders self-drilling 75mm screwed, for partitioning scheme D, red
23.80 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.835.000

Tool holders

12.835.000
Tool holders self-drilling 87.5mm screwed, for partitioning scheme E, red
24.85 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.836.000

Tool holders

12.836.000
Tool holders self-drilling 105mm screwed, for partitioning scheme F, red
27.05 CHF
incl. of VAT
remove add add_shopping_cart
Tool holders 12.837.000

Tool holders

12.837.000
Tool holders self-drilling 120mm screwed, for partitioning scheme G, red
28.10 CHF
incl. of VAT
remove add add_shopping_cart
